DirectPanel™ — Medium Duty Temporary Fencing
Best seller
In Stock

DirectPanel™ — Medium Duty Temporary Fencing

Order by for next day dispatch

2.1 metres (H) x 2.4 metres (W) · 150mm x 60mm infill mesh · Weight approximately 18kg · less bracing, lower cost per metre.

Fast Site Delivery
high quality
National coverage
Get a free quote – no obligation
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.
No obligation
Response within 2 business hours
Description
Specifications
Compare
FAQ

DirectPanel™

The DirectPanel™ is our flagship medium-duty temporary fencing panel, engineered specifically for the harsh conditions of Australian construction, civil, and event sites. Unlike alternatives that use thin-walled steel to save on shipping weight, we manufacture the DirectPanel™ with a robust 2mm wall thickness outer frame and 3mm anti-climb mesh. This means our panels resist bending, warping, and damage from rough handling on site. Because the panel is inherently stiffer and supported by our heavy 32kg blocks, it requires significantly less bracing* than lighter systems. You buy fewer parts, spend less time installing, and lower your total cost per metre.
2mm Frame Construction
Outperforms standard 1.2-1.5mm frames, dramatically extending the lifespan of your investment.
32kg Base Blocks
Heavy-duty UV-rated plastic shells filled with high-density concrete, made for durability.
Engineer Certified
Tested and certified to meet or exceed AS 4687:2022 standards for Temporary Fencing.
Physical Specifications
Frame OD
48.3mm
Frame thickness
2mm
Mesh wire gauge
3mm
Panel width
2.4m
Panel height
2.1m
Weight per panel
~16kg
Mesh aperture
60×150mm
Compliance & Accessories
Standard
AS 4687
Certification
Independent engineer cert.
Base block weight
32kg
Base block material
UV-rated HDPE
Brace requirement
1 per 3 panels (std.)
Wind zone
Standard–High
Shade cloth
Compatible (extra bracing req.)
Specification
Avg. Competitor
Frame OD
48.3mm
32mm
Frame thickness
2mm+
<1.5mm
Mesh gauge
3mm+
<2mm
Block weight
32kg
1 per 2
Brace ratio (std)
Frame OD
What are the specifications of a DirectPanel panel?

• Panel size: 2400mm x 2100mm
• Panel weight: 18kg
• Block size: 585mm x 225mm
• Block weight: 32kg

Are bulk discounts available?

Yes, bulk discounts are available on DirectPanel orders.

Why choose DirectPanel over a competitor's panel?

DirectPanel is built to require less bracing* and fewer counterweight blocks per linear metre than typical lightweight alternatives, while still meeting Australian Standards. Both DirectPanel and comparable competitor panels use 2mm wall thickness, full hot-dip galvanising, and a 32kg footing block. What sets ATF Direct apart is that DirectPanel is independently engineer certified - an important factor when it comes to safety and reliability.

*Opting for lighter weight fencing generally requires you to install additional bracing and counterweights, all of which add to the overall cost per linear metre. ATF DirectPanel has been designed and manufactured to reduce the number of braces and blocks you need per linear metre, while maintaining adherence to Australian Standards. ATF DirectPanel has superior structural strength compared to competitors and requires less labour to install.

What features does DirectPanel include?

Anti-climb mesh, quality hot-dipped galvanised steel construction, concrete-filled feet blocks, and engineer certification. It's suited to medium duty applications and construction sites.

Dot
Calculator

Fence Calculator

10m
10m5000m

Panels

5

2.4m width

Blocks

10

2 per panel

Braces

2

1 per 3 panels

Coverage

12m

Total length

Dot
Complete your order

You might also like

Access Control

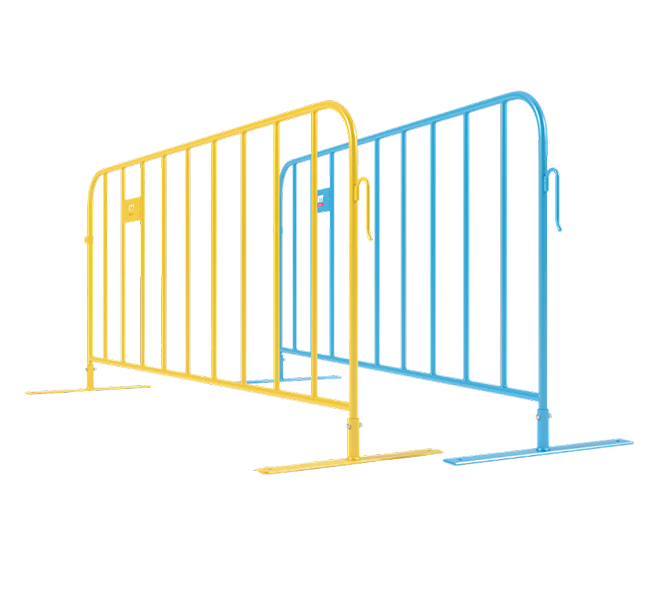

Crowd Control Barriers
